Design Tips

Never design a curb (the sill that is under the door area) on an angle. This applies to 135 degree standard angle enclosures, 90 degree enclosures, as well as custom angle enclosure openings. Always design a curb so the door can swing freely in and out. The only way to do this is by making the curb hit the return knee wall or angle sill at 90 degrees (square).

Always pitch seats and shower floor pans so the water drains properly to the drain area. You do not want water to be stagnant or puddling will occur. Always pitch the curb sill under the door, on knee walls, and under all fixed panels approximately 3/16” in towards the interior of the shower enclosure to ensure proper drainage with no stagnant water buildup. Always try and use a continuous piece of marble or granite to minimize grout joints under the glass.

There is nothing standard about a frameless shower enclosure, but you should always work off of standard angles when possible.90 degree, 135 degree, 180 degree angles are your standard in the industry.

For best results the soffits must be plumb to the lower curbs. The will ensure satisfaction on your design and give a perfect reveal.

For best results, all body sprays should be directed towards the tile wall or fixed panels. Keep direct water spray away from the door. Never install body sprays directly opposite an enclosure door or opening. The only vulnerable area of a frameless shower enclosure is the door! So try to always keep direct water spray away (body jets and shower heads) from the door to ensure less water from escaping.

Due to polishing and tempering procedures a 4 ½” minimum width is required for glass panels.

If you are planning to use a decorative listello raised border or any border for that matter, always use one that is flush or flat with the other tile in the shower door area. If you choose to use one that sticks out past the wall tile, make sure it stops before the door area. Nothing should be protruding out that would interfere with the door swing.

Never use glass tiles! When considering a frameless design that would require drilling into the tile. Inevitable the glass will crack during the drilling process, or over time.

Any overhangs near the door opening may cause problems, such as gaps, that will result in serious leaking issues. Always run the tile flush with the vertical rise tile.

Pitch guidelines for shower curb. See below.

Always level the rise where the door closes this is most important; otherwise a costly custom double cut door is required.

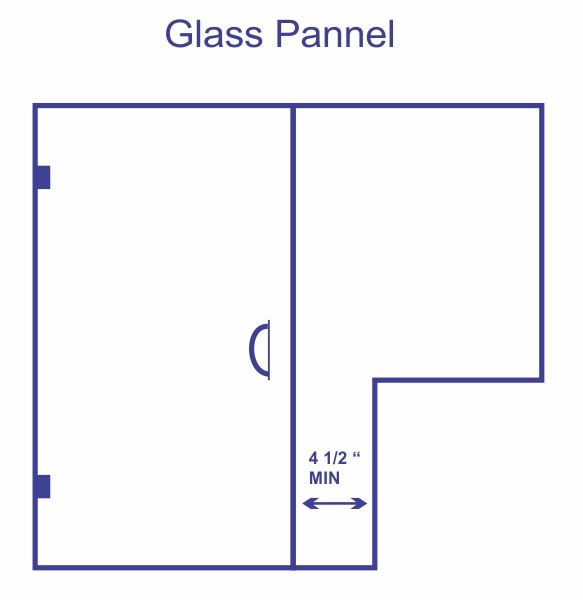

When a return panel of glass that sits on a knee wall or a tub deck requires the glass to be notched, make sure the “leg” is no smaller than 4 ½” or a separate piece will need to be added creating another seam that can be avoided.

When designing your enclosure, try to never leave your tile, marble, granite, tub decks, etc. overhang anywhere. If it does, a notch can be made with a diamond saw. Make the notch 1/8” wider than the glass and no more than ¾” deep to minimize breakage.

Always install a vertical wood stud where the door hinges will be placed or fixed panels are to be clipped too. Never run wires or pipes through or in front of the studs where the anchoring will be done. If you already did put pipes or wires where they shouldn’t be, make sure you tell us and we will manufacture the glass to ensure the screws miss them when the installation takes place.

If you are designing an enclosure that has a knee wall, always allow enough of a ledge for a small panel to join the 90 degree return panel that goes on top of the knee wall. This not only creates a small shelf and more room in the shower area, it secures the larger return panel eliminating almost all the flex from the 90 degree return piece.
